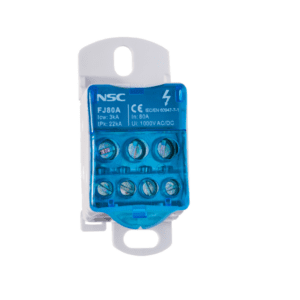

| NS22-FJ208-80B | ||
| CB/CE/RoHS | CERTIFICATION | |
| MATERIAL | ||
| 50x64x50 | Size(mm) | |
| Zinc-Coated Steel | Screw | |
| Brass | Conductor | |
| PA66/V-0 | Housing | |
| PC | Cover | |
| ELECTRICAL DATA | ||
| IEC 60947-7-1 | Standards | |
| 500 | Voltage(V) | |
| 80 | Current(A) | |
| 4/5 | Icw(KA) | |
| 20 | Ipk(KA) | |
| WIRING DATA | ||
| A | Input | |
| x3 | Connection Points | |
| 5 | Torque(N.m) | |
| 5/5 | Diameter(mm) | |
| 2.5~6 | Metric Wire(mm²) | |
| 1.5~6 | Imperial Wire(AWG) | |
| A | Output | |
| x5 | Connection Points | |
| 1/2 | Torque(N.m) | |
| 4 | Diameter(mm) | |
| 1.5~4 | Metric Wire(mm²) | |
| 0.75~4 | Imperial Wire(AWG) | |
| NS22-FJ218-80B | ||
| CB/CE/RoHS | CERTIFICATION | |
| MATERIAL | ||
| 50x130x50 | Size(mm) | |
| Zinc-Coated Steel | Screw | |
| Brass | Conductor | |
| PA66/V-0 | Housing | |
| PC | Cover | |
| ELECTRICAL DATA | ||
| IEC 60947-7-1 | Standards | |
| 500 | Voltage(V) | |
| 80 | Current(A) | |
| 4/5 | Icw(KA) | |
| 20 | Ipk(KA) | |
| WIRING DATA | ||
| A | Input | |
| x6 | Connection Points | |
| 2 | Torque(N.m) | |
| 5/5 | Diameter(mm) | |
| 2.5~6 | Metric Wire(mm²) | |
| 1.5~6 | Imperial Wire(AWG) | |
| A | Output | |
| x12 | Connection Points | |
| 1/2 | Torque(N.m) | |
| 4 | Diameter(mm) | |
| 1.5~4 | Metric Wire(mm²) | |
| 0.75~4 | Imperial Wire(AWG) | |
