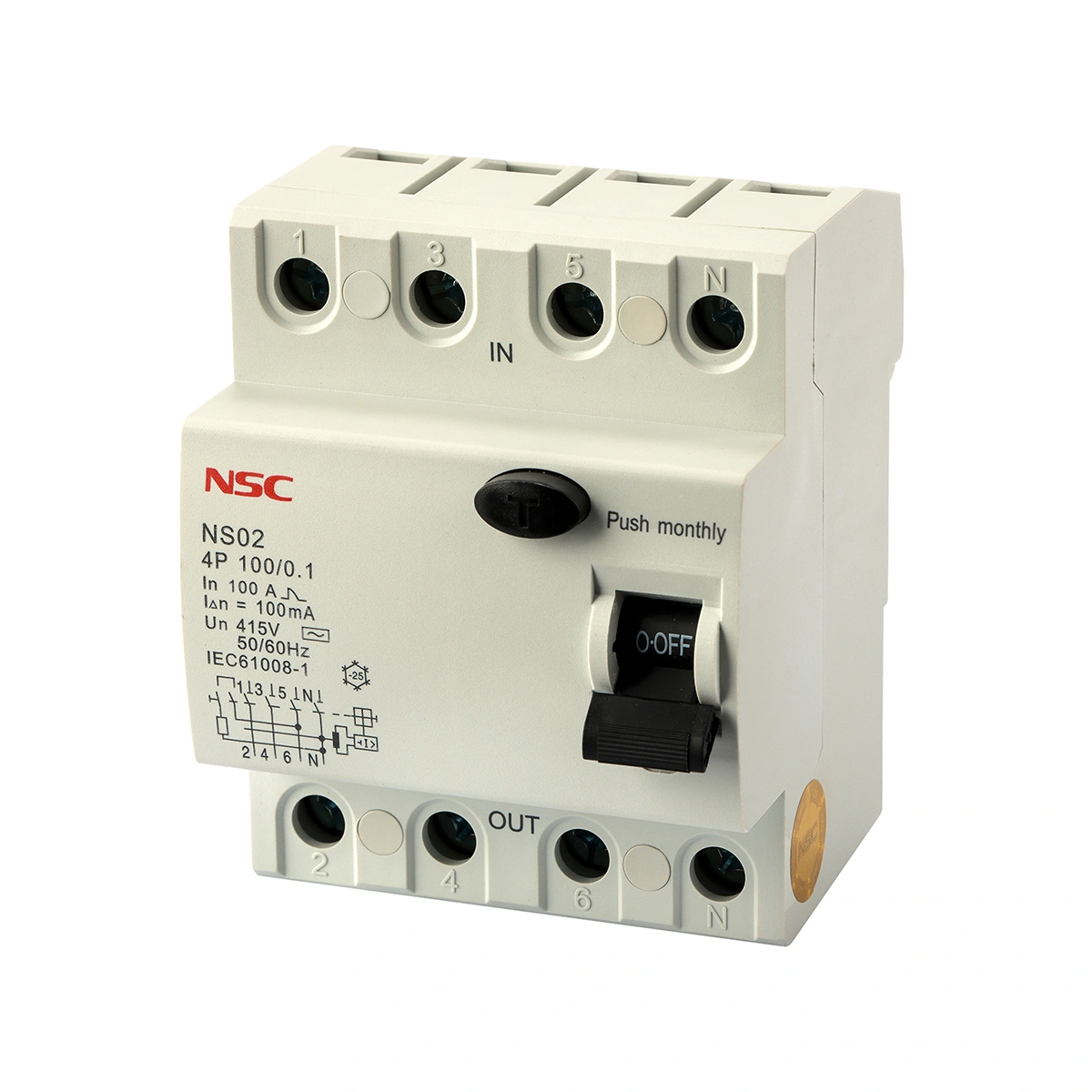

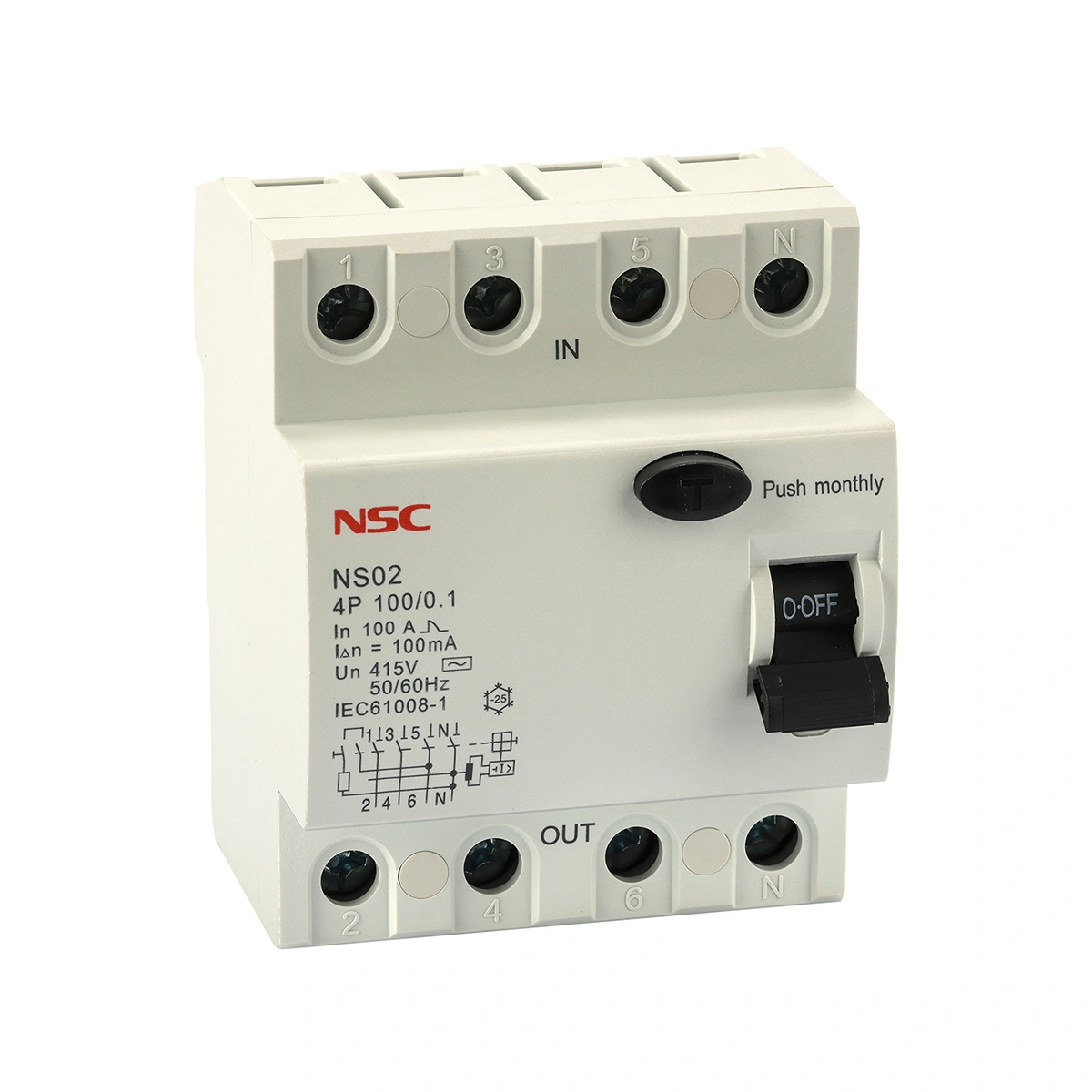

| مشخصات فنی | ||
| الکتریکی | Mode | Electromagnetic, Electronic |
| Type | A,AC | |
| Rated current In | 25,40,63,100A | |
| Poles | 2P(1P+N),4P(3P+N) | |
| Rated voltage Ue | 2P 240V~ / 4P 415V~ | |
| Insulation voltage Ui | 500V | |
| Rated frequency | 50/60Hz | |
| Rated residual operation current(I△n) | 10,30,100,300,500 mA | |
| Rated residual making and breaking capacity(I△m) | 500(In=16-40A), 630(In=63A) | |
| Short-circuit current Inc=I△c | 6,000A | |
| SCPD fuse | 6,000A | |
| Break time under I△n (Tripping duration) | Instantaneous tripping ≤0.1s | |
| Rated impulse with stand voltage(1.5/50)Uimp | 4000V | |
| Dielectric test voltage at ind.Freq. for 1min | 2.5kV | |
| Electro-mechanical endurance | 4,000 Cycles | |
| نصب | Contact position indicator | Yes |
| Protection degree | IP20 | |
| Ambient temperature(with daily average≤35℃) | -5℃~+40℃ | |
| Storage temperature | -25℃~+70℃ | |
| Terminal connection type | Screw terminal – Pillar terminal with clamp | |
| Terminal size top/bottom for cable | 25mm2 18-3AWG | |
| Terminal size top/bottom for busbar | 25mm2 18-3AWG | |
| Tightening torque | 2.5Nm 22In-lbs | |
| Mounting | On DIN rail EN60715 (35mm) – Panel mounting | |
| Connection | From top and bottom | |
