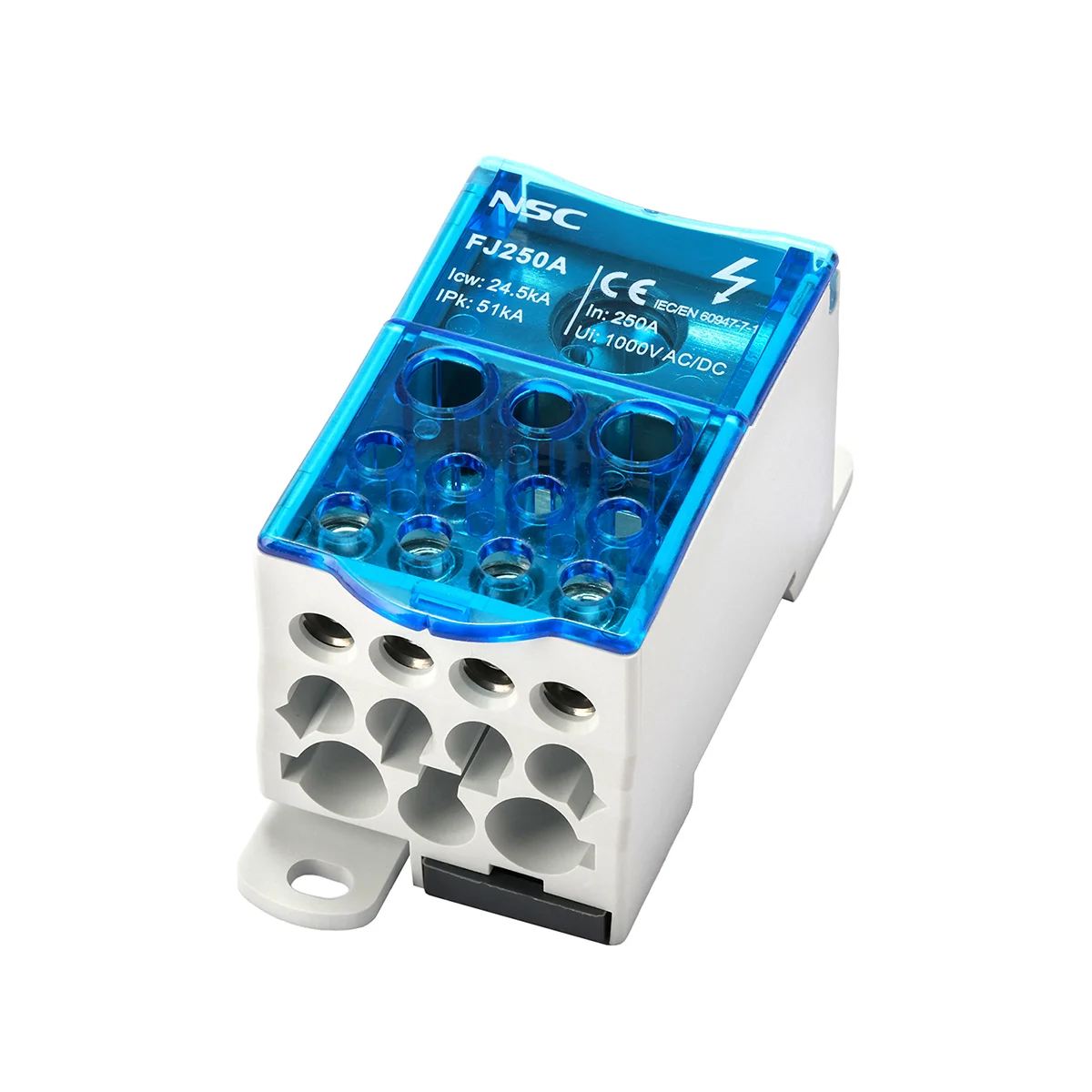

| NS22-FJ250A | |||
| CB/CE/RoHS | CERTIFICATION | ||
| MATERIAL | |||
| 96x46x50 | Size(mm) | ||
| Zinc-Coated Steel | Screw | ||
| Tin-Coated Brass | Conductor | ||
| PA66/V-0 | Housing | ||
| PC | Cover | ||
| ELECTRICAL DATA | |||
| IEC 60947-7-1 | Standards | ||
| 1000 | Voltage(V) | ||
| 250 | Current(A) | ||
| 24.5 | Icw(KA) | ||
| 51 | Ipk(KA) | ||
| WIRING DATA | |||
| A | Input | ||
| x1 | Connection Points | ||
| 19 | Torque(N.m) | ||
| 15 | Diameter(mm) | ||
| 35~120 | Metric Wire(mm²) | ||
| 6~250kcmil | Imperial Wire(AWG) | ||
| C | B | A | Output |
| x4 | x5 | x2 | Connection Points |
| 2.7 | 2.7 | 4.4 | Torque(N.m) |
| 6.1 | 6.8 | 9 | Diameter(mm) |
| 2.5~10 | 2.5~16 | 6~35 | Metric Wire(mm²) |
| 14~6 | 14~4 | 14~1 | Imperial Wire(AWG) |
